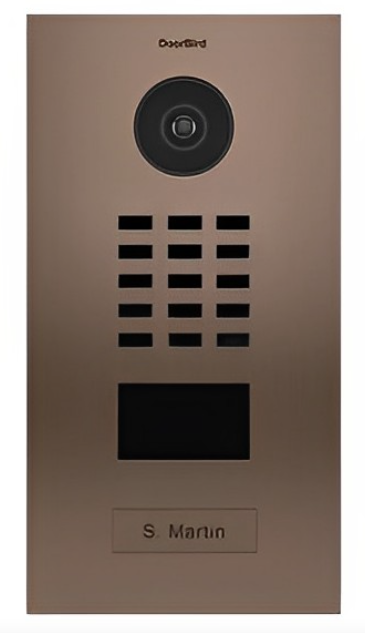

DoorBird IP Video Door Intercom, Bronze

DoorbirdSKU: D2101BV

Price:
$1,192.15

Description

The Doorbird D2101BV is a video intercom that allows you to see and talk to people who come to your door at any time and remotely thanks to the integrated IP camera, directly on a smartphone or tablet. Family members can use the built-in RFID as the key to the door.

D2101V door bird IP video intercom, stainless steel V2A, brushed, PVD coating with a bronze finish, 1 call pushbutton.

DoorBird D2101BV IP Video Door Intercom Features:

  • Automatic door buzzer
  • Free visitor history
  • Individual action schedules
  • Geofencing
  • HDTV Video
  • Light sensor
  • Microphone
  • Noise reduction and echo cancellation (AEC, ANR)
  • RFID reader
  • Motion sensor with 4D technology
  • Call button
  • Easy connection to the network
  • Two freely configurable bi-stable switching relays

DoorBird D2101BV IP Video Door Intercom Specification:

General

  • Front: Brushed stainless steel, 3mm. Bronze finish.
  • Rear mounting housing: Stainless steel.
  • Type of installation: flush or surface mount, mounting box sold separately.
    Call button: plastic. Metal engravable cover plate available separately.
  • Nameplate: illuminated
  • Power supply: 15V DC or Power over Ethernet (PoE 802.3af Mode-A)
  • Weight: 1577gr
  • Connection:
    • RJ45, for LAN/POE
    • Bi-stable locking relay #1, max. 1-24V DC/V AC, 1 amp, e.g. for the electric door opener
    • Bi-stable locking relay #2, max. 1-24V DC/V AC, 1 amp, e.g. for the electric door opener
    • External input (without potential) for the external door unlock button
    • Input 15V DC (+,-).
  • Weather Protection: Yes, IP65
  • Dimensions: 253 x 131 x 48.75mm (H x L x D)
  • Conditions of service: -25 to +55°C
    • Relative humidity of the air: 10 to 85% (non-condensing)
  • Content of the delivery:
    • 1x main electrical unit
    • 1x front
    • 1x RFID badge
    • 1x RFID card
    • 1x small pieces
    • 1x installation guide

 Requirements

  • Required system:
    • Internet: high-speed fixed broadband internet connection broadband, DSL, cable or fiber, no socks or proxy server.
    • Network: Ethernet network with DHCP
  • Recommended mounting height: The camera lens should be placed at least 125 cm.

 Video

  • Camera: 720p HDTV, Dynamic (VGA – HDTV)
  • Objective: large hemispherical angle High-end at 180° horizontally, 90° vertically, with correction, adaptable in infrared
  • Night vision: Yes, brightness sensor, automatic IR-Cut filter, 12 IR LEDs (850 nm)

 Audio

  • Audio components: speaker and microphone, noise and echo reduction (AEC, ANR)
  • Audio streaming: bidirectional, full duplex.

 Network

  • Ethernet RJ45 Jack, PoE 802.3af Mode-A

 Motion sensor

  • Type: Active
  • Detection angle: 110°
  • Range: 1 - 10 m, depending on the environment, configurable in steps of 1
  • Technology: 4D. Based on multiple sensors and integrated algorithms, radio frequency energy (RFE)
  • Configuration: Via the app, e.g.
    • Scope (1.10 m / 3.3 - 32.9 ft)
    • Direction (approaching, moving away, both)
    • Individual events (e.g., push-button relay, push message, SIP [Audio/Video] call, HTTP notification(s)
    • Individual schedules

 RFID

  • Type: Active Drive Passive Label System (ARPT)
  • Standard: ISO/IEC 18000-2:2009 Part 2
  • Frequency: 125 KHz
  • Range 0 - 3 cm, depending on the environment
  • Antenna: Internal
  • Compatible transponder: available separately,
  • Configuration: Via the app, e.g.
    • Tag (add/remove)
    • Individual events (e.g., push-button relay, push message, SIP [Audio/Video] call, HTTP notification(s)
    • Individual schedules

Built-in wireless module

  • RFID: 125 KHz
  • Sensor: 24 GHz, can be disabled

Special remarks: Assembly requires professional skills or a technician.
