ALTA Industrial Wireless Air Velocity Sensor, 900MHZ

MonnitSKU: MNS2-9-IN-PS-AV

Price:
$491.40

Description

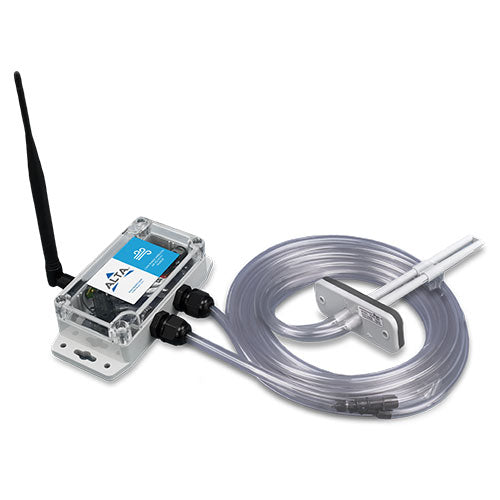

Velocity sensor measures the pressure difference between two input ports, as well as ambient temperature and altitude, to determine airflow speed in a system. Use in sensitive areas, e.g., hospitals & clean rooms.

Monnit MNS2-9-IN-PS-AV Features

  • 1,200+ foot range
  • 12+ year battery life
  • 80+ wireless sensors
  • Bank-level AES security
  • Up in 15 easy setup
  • Global ready (900, 920, 868 & 433 MHz)
  • Pressure Range: -500 Pa to 500 Pa
  • Allowable Overpressure: 100 kPa
  • Rated Burst Pressure: 500 kPa
  • Max Humidity for Long-Term Exposure: 40°C dew point
  • Sensing Range: Range at 0 m Altitude: 0-30m/s Range at 5000 m Altitude: 0-40m/s Range at 8000 m Altitude: 0-50m/s
  • Span Repeatability: 0.5% of reading
  • Span Shift Due to Temperature Variation: < 0.5% of reading per 10°C
  • Offset Stability: < 0.05 Pa/year
  • Calibrated For: Air, N2
  • Media Compatibility: Air, N2, O2, non-condensing
  • Weight: 3.7 oz.
  • Variation Specifications

  • Supply Voltage: 2.7–3.8 VDC (3.0–3.8 VDC using power supply)
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • ALTA Industrial Specifications

  • Supply Voltage: 2.0 - 3.8 VDC
  • Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
  • Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.*
  • Max Operating Temperature: -40° to 85°C (-40° to 185°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)
  • Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • Dimension: 3.7 in x 2.32 in x 1.38 in
  • ALTA 900 MHz Specifications

  • Operating Frequency: 900 MHz Operating Frequency
  • Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)
  • Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*
  • Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
