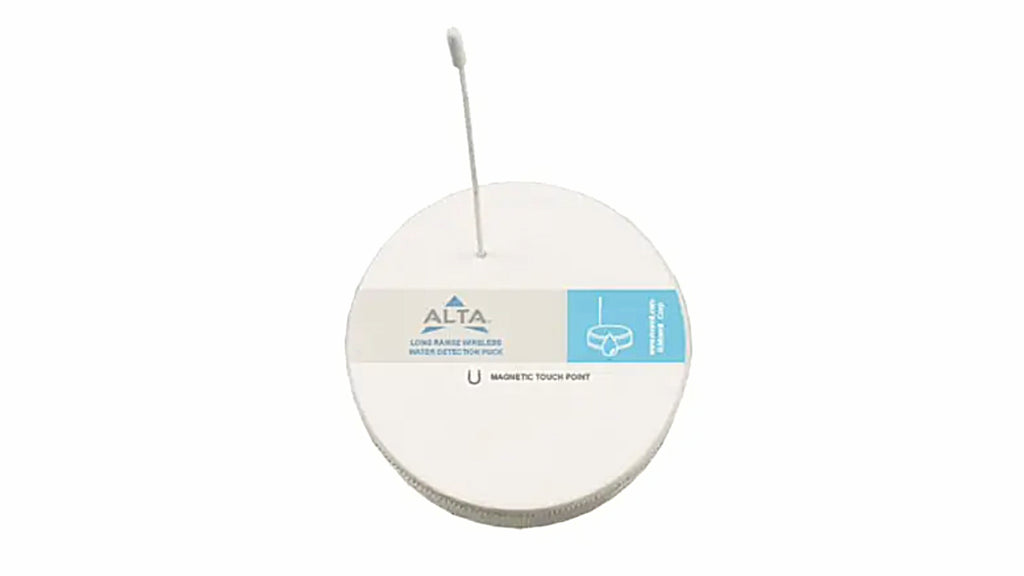

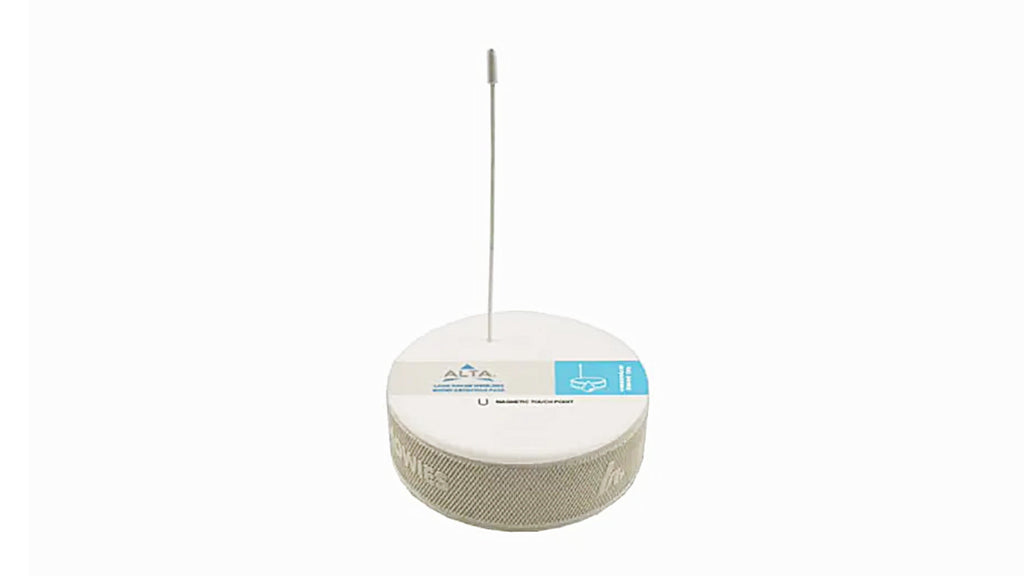

Wireless Water Detection Puck Sensor, White

ALTA® Wireless Water Detection Puck Sensors report the

presence or absence of water. The convenient water-tight

puck design allows the sensor to be placed anywhere it's

dry or wet. Note: water levels must be ~ 1.6mm high to

trigger detection

Features of Monnit ALTA Sensors:

- Wireless range of 2,000+ feet through 18+ walls

- Frequency-Hopping Spread Spectrum (FHSS)

- Best-in-class interference immunity

- Best-in-class power management for longer battery life

- Encrypt-RF ® Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)

- Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):

- 10-minute Heartbeats = ~ 22 days

- 2-hour Heartbeats = ~ 266 days

- Automatic over-the-air updates to sensor firmware (future-proof)

- Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and send alerts via SMS text, email, and voice call

Specifications of Monnit ALTA Sensors:

• Detection Requirements:
  -Input impedance 2.5 MΩ
  -Maximum medium impedance 900.0 kΩ (Clean water has a typical impedance of 50 to 200 kΩ )

• Puck:
  -Dimensions: 75mm (diameter), 25mm (height), 30mm (height with rubber feet)
  -Enclosure material: Vulcanized rubber
  -Water protection: Completely sealed, waterproof, fully submersible
  -Water detection minimum height: 1.6mm (1/16")
  -Weight: 7.6 ounces
  -Battery: 3.6V 750 mAh Lithium (non-replaceable)
  -Expected battery life: 10 years at a 10-minute Heartbeat
  -Operating temperature range: -40°C to 85°C (-40°F to 185°F)

• ALTA Wireless:
  -Data logging: Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days - 2-hour Heartbeats = ~266 days
  -Wireless protocol: ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS)
  -Wireless transmission power: (EIRP) 50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz)
  -Wireless range: 2,000+ ft. through 18+ walls with the ALTA XL
  -Security: Encrypt-RF

• General:
  -Battery voltage range: 2.0 to 3.8 VDC
  -Operating altitude (non-pressurized): -15.2 to 1,982 m (-50 to 6,500 ft)
  -Storage altitude (non-pressurized environments): -15.2 to 3,048 m (-50 to 10,000 ft)
  -Operating humidity: 5 to 85% RH (non-condensing)
