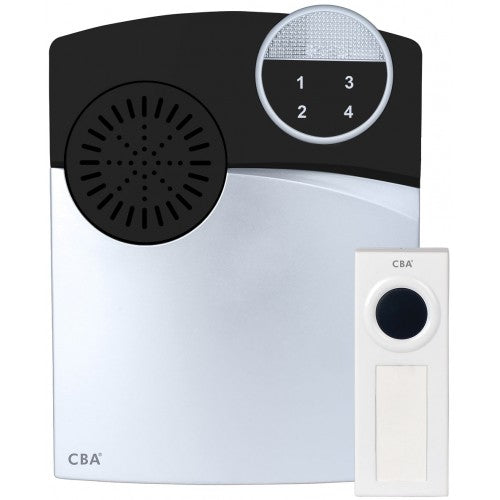

RA-4961-K1Q - Seco-Larm CBA Push Button Visual and Audible Wireless Alert System

The Seco-Larm Wireless Alert System comes with a wireless push button that can be used as a doorbell or call for assistance button.  When the button is pressed it sends a wireless signal to the receiver.  The receiver plays your choice of ringtones and lights a visual display.  The visual and audio display makes it a great choice for hearing or visually impaired.

The chime receiver can be set to display a visual indicator, audio indicator, or combined visual and audio indicator.

The receiver may be wall or desktop mounted and has a wired output to connect it to an external device if needed.  The system supports up to 1000 foot range*.

The receiver features four separate channels so you can add up to 4 transmitters and have each one trigger its own zone number and unique sound, in addition to the flashing indicator.

This item replaces the Dakota Alert DC1000.

USER MANUAL

DATASHEET

RA-4961-K1Q Features:

• Up to 1,000ft (305m) transmission range*
• 18 Programmable ringtones

• Connect up to 4 wireless transmitter accessories, sold separately
• Audible and visual alert via built-in speaker and flashing light
• Wall or desktop mountable
• Push button is IP65 outdoor rated to -20C / -4F
• Form C Output terminals for optional auxiliary device, triggered by transmitter linked to channel 4
• Transmitter push button powered by CR2032 battery
• Receiver powered by 3 x C Batteries or optional 6V power supply
• Each channel is independently programmable

 * Range will be reduced based on environment, walls, structure and interference.

Kit Includes:

• Wireless Receiver (RA-4961Q)
• Wireless Pushbutton (RA-4961-PBQ)

RA-4961-K1Q Parts List:

• 1x Wireless alert receiver (RA-4961Q)
• 1x Wireless pushbutton (RA-4961-PBQ)
• 1x Manual
• 1x CR2032 battery for wireless pushbutton (RA-4961Q batteries not included)

Product Specifications:

Model number: RA-4961Q:

• Frequency: 914.8MHz
• Channels: 4
• Accessories per channel: 1
• Relay output (Channel 4 only): 1 (Form C Relay), 1A@50VDC
• Power supply: 3 "C" batteries or 6VDC power adapter | (Both not included)
• Current draw:
• Standby: 0.3mA
• Max: 220mA
• Estimated battery life: 270 days (3 triggers/day)
• Receiver low battery indicator: Notification LED flashes every 5 seconds
• Accessory low battery indicator: Zone LED for accessory blinks continuously
• Sound level (dB): Up to 96dB@1ft(30cm)
• Operating temperature: 32º~140º F (0º~60º C)
• Dimensions: 5 1/4" x 1 9/16" x 6 5/8" (133x40x169 mm)

Model number: RA-4961-PBQ:

• Frequency: 914.8MHz
• Transmission range*: Up to 1,000ft (305m)
• Channels: 1
• Power supply: CR2032 Battery (included)
• Current draw:
• Standby: 0.2µA
• Active: 16mA
• Estimated battery life: 400 days (3 triggers/day)
• Low battery indicator: Zone LED on receiver blinks continuously
• IP rating: IP45
• Operating temperature: -4º~140º F (-20º~60º C)
• Dimensions: 1 5/16" x 11/16" x 3 7/16" (34x18x87 mm)
