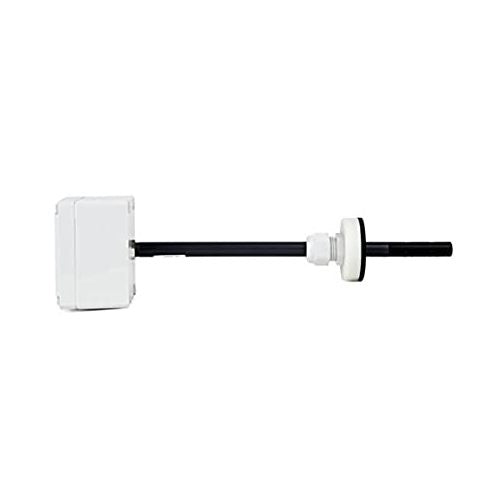

Sensaphone Duct Mount Air Flow Transmitter

Save $16.50
SENSAPHONESKU: FGD0069-DUCT

Price:
$202.50 $219

Description

This airflow transmitter registers the airflow speed according to a thermal principle based on the fact that the cooling action of air increases with airspeed.



Used with any Sensaphone that will accept a 4-20mA input signal, the device will provide real-time data and will cause your Sensaphone to activate an alarm when the airflow reaches a set threshold. This is especially useful for monitoring air conditioning in ducts.



Product Specifications:

  • Name: 4-20mA Type Duct Mount Air Flow Transmitter
  • Airflow Speed Range: 0-8m/s or 0-16m/s by removing the onboard jumper
  • Operating Temperature Range: 32° to 122°F | 0° to 50°C
  • Humidity Range: 5 - 95% RH
  • Accuracy: ± 5%
  • Depth of Insertion Channel: 2-8” | 50 - 200mm
  • Dimensions: 3.15 x 3.15 x 2.17” | 80 x 80 x 55mm
