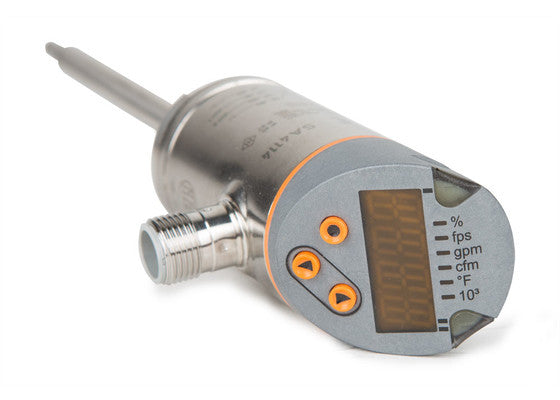

Sensaphone FGD-0223-4 4-20mA Thermal Flow Meter with Digital Display 4 in Probe

SensaphoneSKU: FGD0223-4

Price:
$503.78

Description

Sensaphone FGD-0223-1 4-20mA Flow Meter with Digital Display and 4" Probe for 3.5 to 10 inch Pipe

The Sensaphone FGD-0223-4 measures real time temperature and flow rates.  The flow rate can be reported to any Sensaphone monitoring system that supports 4-20mA sensors.  Supports water, oil, glycol or air.

The sensor also measures temperature and displays it on the built in digital display.  Temperature is not transmitted.

This version has a 4" probe for pipes from 3.5 inch to 10 inches.

Note:  A 24VDC power supply is required and NOT included.   See part# FGD-0070 or FGD-0071 or equivalent.



FGD-0223-4 Specifications:

  • Monitors flow and temperature
  • Analog 4-20mA output
  • Requires 18-30 VDC power
  • Supports water, glycol, air, oils
  • Probe length 4" for 3.5" to 10" pipe
  • Liquid Flow measuring range:  .15 to 9.85 ft/s
  • Gas flow measuring range: 6 to 328 ft/s
  • Operating temp range: -40 to 176F
  • Fitting 1/2" NPT
