EMX Wired Vehicle Detection Driveway Alarm

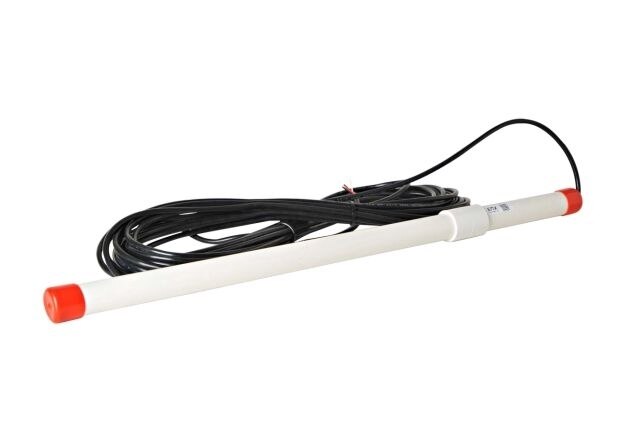

Detect vehicles entering your property with this wired vehicle detection driveway probe. Unlike most systems this probe doesn't require any external processor. Instead it has a built in relay that can connect to a security system, driveway alarm, chime or other system.
Just connect it to a 9-41VDC or 6-29VAC power supply (not included) and connect the relay output wires to your system.
The on board relay will trigger momentarily when it detects a moving vehicle. When the vehicle stops or leaves the area it will stop triggering.
The driveway probe has a detection range up to 12-14 feet and should be buried along side or under the driveway.
EMX Wired Vehicle Detection Driveway Alarm Specifications
- Buried vehicle detection probe
- Detects moving metal objects only
- No false alarms from people or animals
- Built in FormC (normally open and normally closed) relay
- Low current consumption, only 0.250mA standby
- Relay rated 1A @ 24VDC
- Requires 9-41VDC or 6-29VAC power supply (not included)
- Dimensions: 24 x 1 inches
- 5 Wire cable, direct burial, 100 foot
