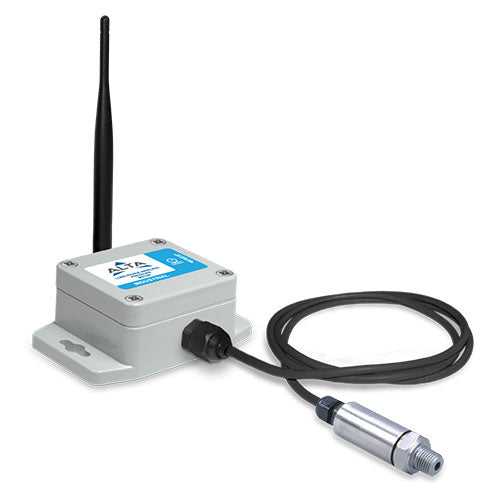

Monnit wireless pressure Meters measure pressure from a 5 volt pressure transducer and transmits the pressure measurement to iMonnit. By connecting the Monnit wireless pressure sensor to a pressurized gas, liquid or vapor supply line, it can measure the pressure within the line and send data to the iMonnit Online Sensor Monitoring and Notification System. The data is stored in the online system and can be reviewed and exported as a data sheet or graph. User customization allows you to set notifications and alerts from the system so you can know immediately if pressure is above or below an optimal range.
1,200+ foot range 12+ year battery life 80+ wireless sensors Bank-level AES security Up in 15 easy setup Global ready (900, 920, 868 & 433 MHz) Operating Temperature: 0 to 175°F (-18 to 79°C) Thermal Effect on Reading: ±0.02% FS/°F. (includes zero and span) Media: Gas, Liquid or Vapor Response Time: 50 msec. Stability: 1.0% FS/year (Typ.) Wire Length: 1 Meter shielded cable (between gauge and wireless unit) Accuracy: 0.25% FS; 0.20% RSS; Absolute Ranges: 0.5% FS; 0.35% RSS (Includes linearity, hysteresis, and repeatability) Input Voltage: 5.5 V Voltage Measurement Range: 0 - 5.2 V Voltage Measurement Resolution: ~3 mV Voltage Measurement Accuracy: ± 3% FS Pressure Measurement Accuracy: ± 3% FS User Calibrated Accuracy: +/- 1% FS Process Connection: ¼" NPT-Male Standard Pressure Transducer(s): 50 or 300 PSIG (Others available upon request) Weight: 10.3 oz. UL Rating: UL Listed to UL508-4x specifications (File E194432) Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR) Max Output Voltage: 5.5 V User Calibrated Pressure Accuracy: ± (0.5% of reading + 0.5% FS) Supply Voltage: 2.0 - 3.8 VDC Battery Type: Replaceable 3.6V, 1800mAH (single AA sized) Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.** Max Operating Temperature: -40° to 85°C (-40° to 185°F) Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F) Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F) Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure UL Rating: UL Listed to UL508-4x specifications (File E194432) Dimension: 3.7 in x 2.32 in x 1.38 in Operating Frequency: 900 MHz Operating Frequency Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1) Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range* Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
Monnit MNS2-9-IN-PS-300 Features
Pressure Transducer Specifications
ALTA Industrial Specifications
ALTA 900 MHz Specifications
