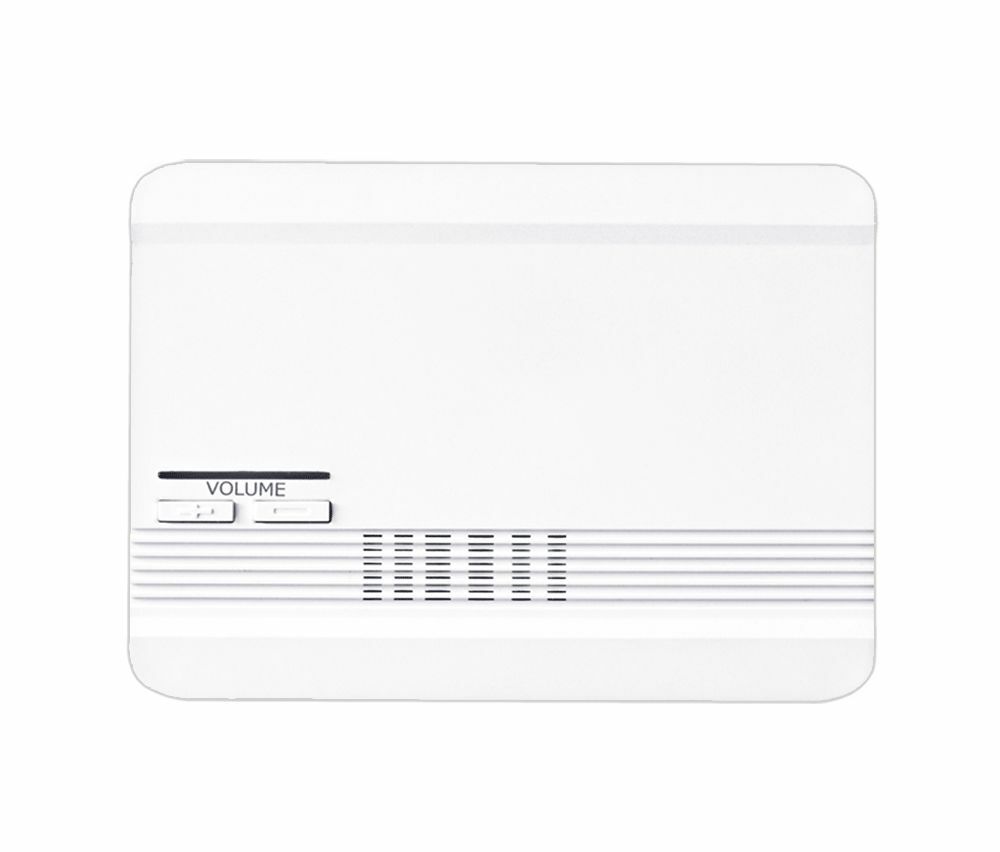

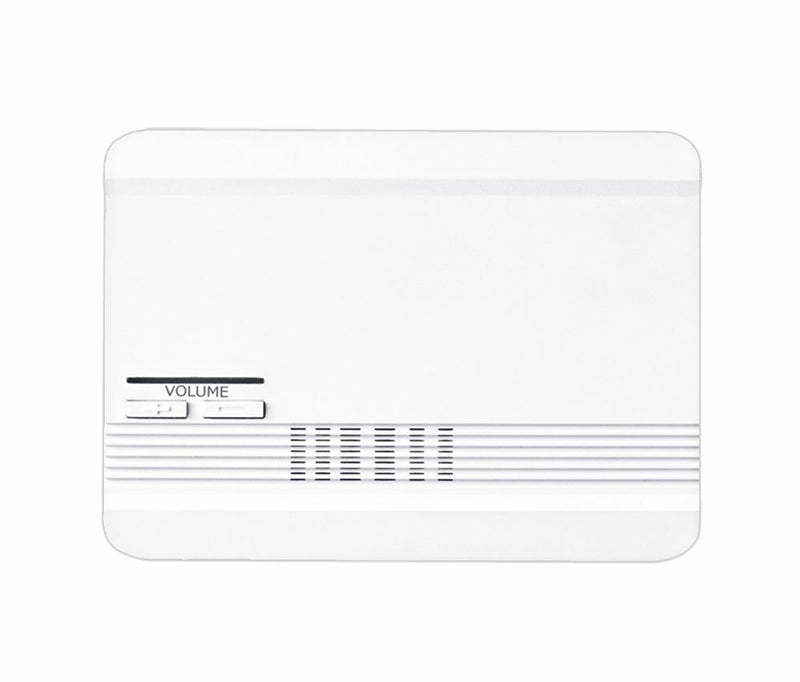

Optex iVision+ Connect IVPC-DI Door Interface




Optex IVPC-DI iVision+ Connect Door Interface

Expand your Optex iVision+ Connect wireless intercom system by adding a door interface and chime module. Users can select from 5 different chime tones with 3 volume levels, to be played when the doorbell button is pressed.

The door interface also has a built in relay that can be triggered by the viewing stations or the app, to trigger a door strike or similar device. It can be used as a chime, dry relay output or both.

* Note (4) IVPC-DI can pair to one IVPC-DS however only (1) IVPC-DI can trigger a relay, the other three are chimes only.

Optex IVPC-DI iVision+ Connect Door Interface Features

  • Provides a chime for the iVision+ Connect system
  • External output to electric strike or mag lock
  • Select from 5 different chimes
  • 3 volume levels
  • On board relay rated 1A, 50VAC / 24VDC
  • Wall mountable
  • Indoor use only

Optex IVPC-DI iVision+ Connect Door Interface Specifications

  • Powered by 10-24V AC/DC
  • Frequency: 916 MHz
  • Dimensions 4.33 x 3.86 x 1.1 inches
  • Power: 10 to 24 AC/DC 500mA max
  • Chime Volume: Approx. 80 dB max, 3 Levels + mute
  • Relay output duration: 1/5/10/30/60 seconds
  • Relay output rating: 1C relay. 1A max. 50V AC/24V DC
  • Operating Temperature: 0 C to 40 C (-32 F to 104 F) < 90% (no condensation)

Optex IVPC-DI iVision+ Connect Door Interface Includes

  • 1 x IVPC-DI Door Interface

Optex IVPC-DI iVision+ Connect Door Interface Support
