PipeBurst Sr. VIP Panel

Pipeburst Pro VIP Sr. - Description

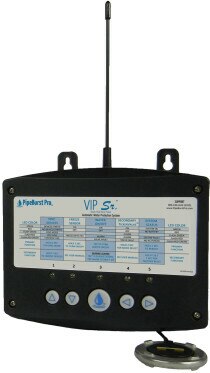

The VIP Sr. is the interface between the wireless Floodbug water sensors and the Pipeburst Pro. Tickervalve. The VIP panel comes complete with a build in audible alarm and LED's for quick status checks of the system. The VIP panel has alarm relay contacts built into so it can be easily integrated into a complete home automation or security system. The VIP Sr. Panel can monitor up to 44 Pipeburst Pro. wireless devices such as the Floodbug water sensors and the FloTrax wireless valve controller. The VIP Sr. comes with one (1) Pipeburst Pro. Sidekick water sensor with 20 feet of wire.

The VIP Sr. also has a battery backup built into the unit. The battery backup is continuously charged and ready to go in the event of a power failure to ensure your property remains covered.

Pipeburst Pro VIP Sr. - Specifications

• UL Rated Power Supply
• Voltage: 18VDC
• Watts: Charger Idling: 2.7
• Charging Battery: 9 Watts
• Motor Running: 28 Watts
• Powered via 120v AC Wall Adapter and Internal Backup SLAB (Sealed Lead Acid Battery)
• Dimensions: 6.8 W x 6.25 H x 5 D
• Enclosure Material: ABS
• Wall Mountable Tabs Spaced at 4 Wide Center to Center
• Internal Chirper Alarm
• Internal Freeze Sensor
• Wireless Device Control Capacity: Up to 44
• Transmit/Receive Frequency: 433.92 MHz
• Wireless Range: 300 Feet (Dependent on Local Structural Conditions)
• LED Status Display
• Buttons for System Control
• SideKick 20FT (SK120B) attached

SideKick Wired Water Sensor (Can be connected to the Floodbug) Specifications

• Wire Length: 20 foot ultra-flexible
• Dimensions, Nominal: 2 Diameter x 3/8 H
• Material: 316 Stainless Steel Housing
• Water Sensors: Gold Plated

Pipeburst Pro VIP Sr. - Included

• 1 - VP100 - Vip Sr. Valve Interface Panel
• 1 - Sidekick Wired Water Sensor (can be connected to the Floodbug or wired directly to the VIP Sr.

Pipeburst Pro VIP Sr. - Downloads and Support

• Pipeburst Pro. Sr. Manual
