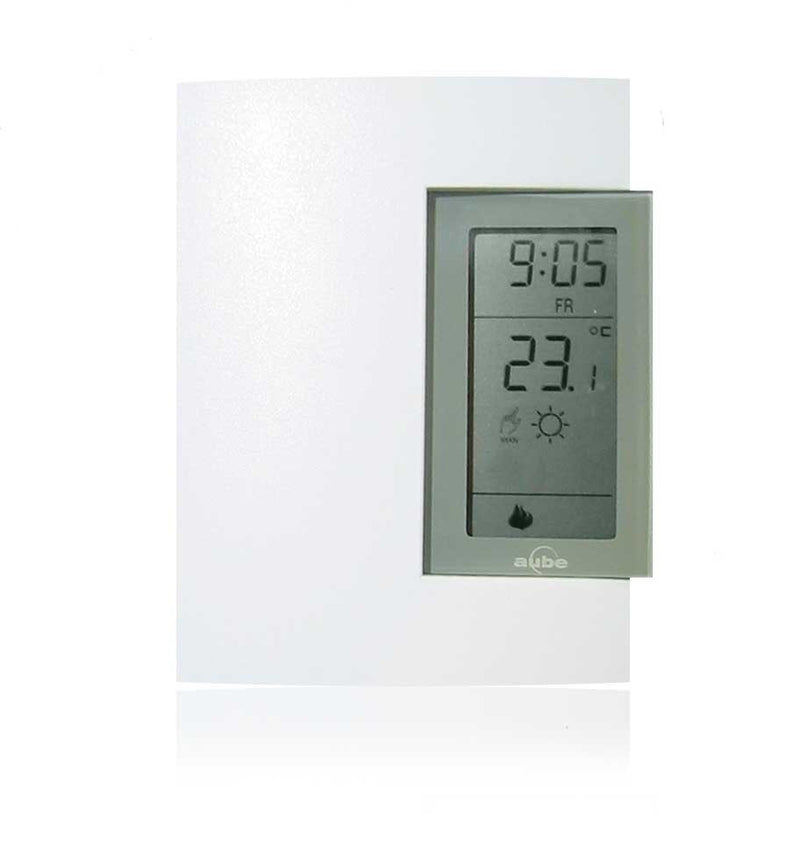

Aube TH141 Programmable Dual Thermostat for Heating and Cooling
What is a dual thermostat?
A dual thermostat has two independent temperature settings that may be selected through a low voltage connection to the Sensaphone 400 & 800. When you call the Sensaphone dialer to turn up the heat, the thermostat will switch from its away temperature to the home or comfort setting. These two temperatures may be programmed to any level you prefer. (typically away = 50 degrees and home = 72 degrees) Unlike a normal programmable thermostat which changes temperatures according to time and date, the dual thermostat changes temperatures on your remote command.
APPLICATIONS: Oil, Gas, Propane with Air Conditioning.
LOAD: 1.5 A @ 24 V
Wires: R, C, W, Y, G
- Selectable temperature control gives thermostat flexibility to control a range of heating/cooling systems
- Automatic changeover between heating and cooling
- Auto/manual fan control
- Comfort, economy, and vacation presets enable temperature changes at the touch of a button
- Armchair programming convenient programming by removing faceplate from base
- Precise LCD shows room temperature in increments of 0.1ºC or 0.1ºF
- Low battery indicator gives 60 days warning to replace batteries
- Remote input enables change of temperature modes from Sensaphone 400 or 800
alarm/automation system (12 VDC transformer required)
TH141 Programmable Dual Thermostat for Heating and Cooling Specifications
- Power supply: 2 AA size alkaline batteries
- Connection: 2, 3, 4 or 5 wires
- Maximum load: 1.5 A/30 VAC per output
- Auxiliary input: 12 VDC ± 10%, 2.3 mA
- Number of programs: 4 programs/day, 28 programs total
- Heating setting range: 5 °C to 30 °C (40 °F to 85 °F)
- Air-conditioning setting range: 16 °C to 40 °C (60 °F to 105 °F)
- Anticipation: electronic anticipation independent of the load
- Regulation: proportional or conventional
- Regulation periods: 5, 10, 15 or 20 minutes
TH141 Programmable Dual Thermostat for Heating and Cooling Includes
- 1 x TH141 Dual Thermostat
TH141 Programmable Dual Thermostat for Heating and Cooling Support and Downloads
