Description

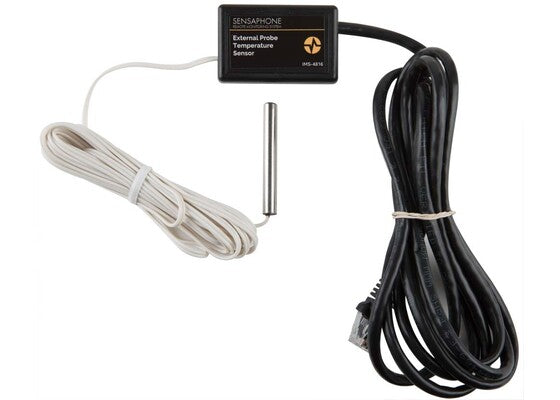

The IMS-4816E Temperature Sensor with External Probe is designed to connect to the Sensaphone IMS product line and monitor temperatures in areas where a traditional sensor won't fit. The electrical connection between the sensor and IMS unit is made via the attached RJ-45 patch cable. The sensor probe may be secured inside equipment using the included clamp or it may be hung using tie wraps. Do not install the black plastic enclosure inside of a refrigerator or freezer. The Temperature Sensor with External Probe comes with an attached 7′ cable with an RJ-45 plug on the end and a weatherproof probe with 12′ of cable. If the sensor installation is close to the IMS unit, you can plug it directly into an IMS environmental input. If the cable is too short you can use the included RJ-45 adaptor and a longer patch cable to extend the length. For applications where the sensor may be far from the IMS unit, you may utilize your existing network wiring infrastructure. For example, the sensor may be installed in another room or another floor. Connect the sensor to your structured wiring network via an RJ-45 jack. At the other end, connect a patch cable from your structured wiring patch panel directly to the Host or Node environment input.
Sensaphone IMS-4816E Solution Temperature Sensor with External Probe Features:
- The sensor's external probe measures temperatures in small or tight areas where other IMS series temperatures aren't suitable such as a refrigerator or freezer
- Temperature measuring range of 32° to 176°F | 0° to 80°C
Sensaphone IMS-4816E Solution Temperature Sensor with External Probe Specifications:
- Name: Temperature Sensor w/ External Probe
- Sensor Temperature Range: 32° to 176°F | 0° to 80°C
- Accuracy: ± 3°F | ±1.7°C
- Connection: RJ45
- Housing: Plastic
- Dimensions: 2.1 x 1.3 x .6” | 53 x 33 x 15mm
- Item Includes: Temperature sensor with 12’ of cable, 7’ patch cable, double-sided tape, RJ45 connector plug coupler
