Description

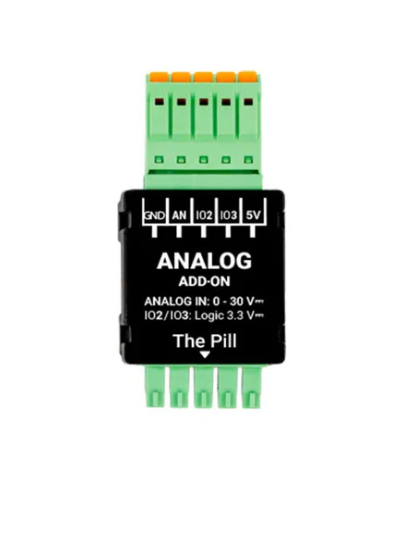

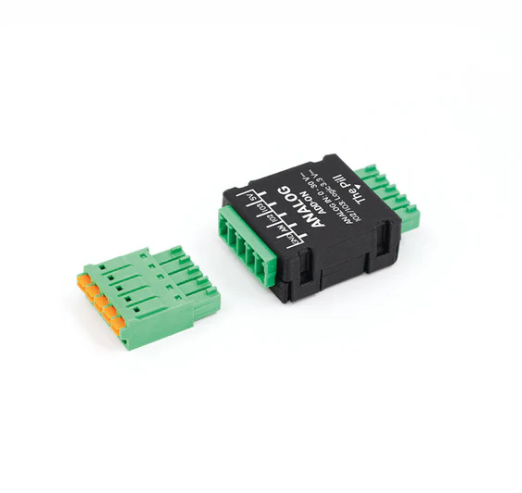

The Shelly Add-on module for the Pill measures analog sensors and DC voltages up to 30V. Ideal for monitoring batteries, power supplies, and other low-voltage devices.
*The Analog 0-30 V Add-on is sold separately and requires the 5-Terminal Add-on to connect with The Pill by Shelly.
Shelly Pill Analog 0-30V Add-on Features:
-
1-to-5 splitter for temperature sensors
-
Extends The Pill’s measurement range for sensors and batteries
-
Compatible via 5-Terminal Add-on
-
1 Analog Input (AN) + 2 configurable Digital IOs (3.3 V logic)
-
5 V power output for connected sensors
|
Physical |
|
|
Size (HxWxD): |
36.5 mm x 26.5 mm x 11.5 mm |
|
Weight: |
8 g |
|
Shell color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
|
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Sensors, meters |
|
|
Voltmeter range (DC) |
0 V - 30 V |
|
Voltmeter accuracy: |
±(2% + 5d) |
|
Input circuits ratings |
|
|
Digital inputs triggering voltage: |
Active LOW; Trigger low: < 0.83 V Trigger high: > 2.48 V |
|
Digital inputs max. voltage |
3.3 V |
|
Output circuits ratings |
|
|
Max. switching voltage: |
3.3 V (logic-level) |
|
Max. switching current: |
20 mA |
