Description
The Shelly Interface module accessory for the Pill provides power, ground, and three configurable I/O terminals. Perfect for connecting sensors, buttons, or other control elements in any setup.
*This is the required base module for other The Pill by Shelly add-ons

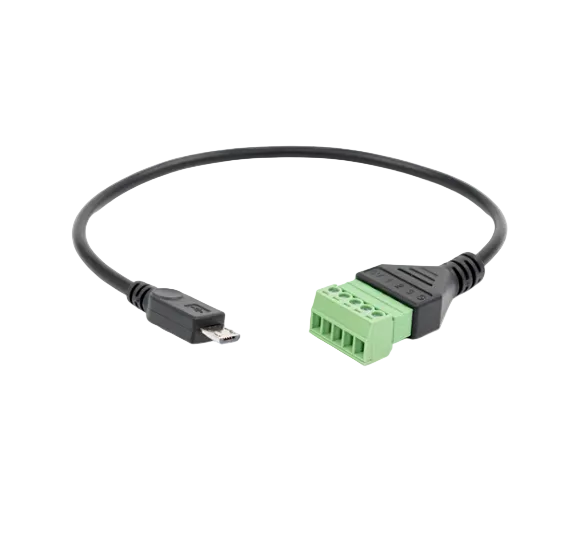

Shelly Pill Micro USB to 5 Terminal Add-on Features:
-
3 configurable Inputs/Outputs (3.3 V logic-level)
-
Supports digital inputs/outputs, analog input, and temperature sensors (DS18B20, DHT22)
-
5 V power and GND terminals for connected devices
- Compact interface for prototyping and integration)
|
Physical |
|
|
Size (HxWxD): |
44 mm x 23 mm x 10mm |
|
Weight: |
23 g |
|
Cable length: |
24 cm |
|
Wire colors: |
Black |
|
Shell color: |
black |
|
Environmental |
|
|
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
|
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
Basic wiring diagrams
