Description

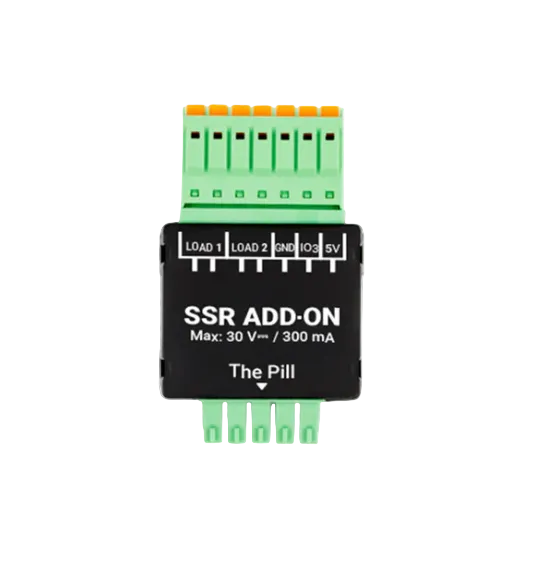

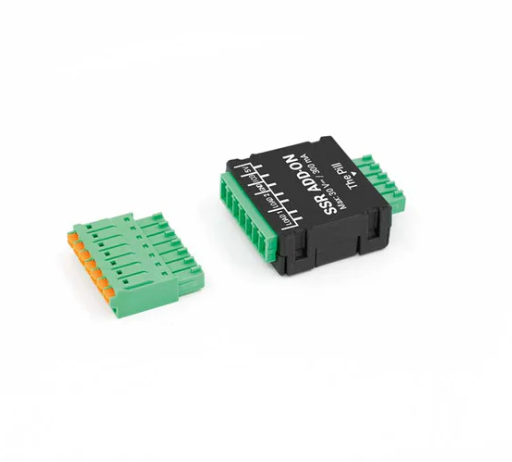

Shelly's dual-channel solid-state relay module for the Pill. Controls two independent DC loads up to 30 V/300 mA. Great option for safe and silent control of lights, fans, or other DC devices.
*The SSR Add-on is sold separately and requires the 5-Terminal Add-on to connect with The Pill by Shelly.
Shelly Pill SSR Add-on Features:
-
Works with The Pill by Shelly via 5-Terminal Add-on
-
Dual-channel DC load control up to 30 V/300 mA per channel
-
Galvanically isolated solid-state relays for reliable switching
- 1 configurable I/O (3.3 V logic-level)
Specifications
|
Physical |
|
|
Size (HxWxD): |
36 mm x 31mm x 11.5mm |
|
Weight: |
12 g |
|
Shell color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
|
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Electrical |
|
|
Power consumption: |
< 0.6 W |
|
Max. switching voltage: |
30 V⎓ |
|
Max. switching current: |
300 mA |
Basic wiring diagrams
