Description

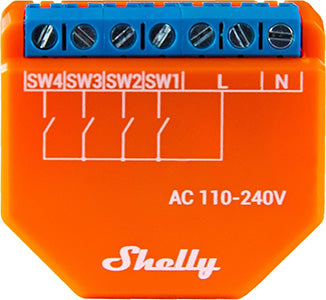

Shelly Plus i4 Wi-Fi switch allows you to manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios. You can use Shelly Plus i4 to control other connected Shelly relays, sensors, or HTTP and MQTT-controlled devices. Small enough to behind every wall switch, Shelly Plus i4 can show the status and control the action of four inputs.
You can access and monitor Shelly Plus i4 remotely from any place where you have internet connectivity, if the Device is connected to a Wi-Fi router and the Internet.
|
Type |
Value |
|---|---|
|
Physical |
|
|
Size (HxWxD): |
37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
|
Weight: |
18 g / 0.63 oz |
|
Mounting: |
Wall box |
|
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
|
Conductor cross section: |
0.5 to 1.5 mm² / 20 to 16 AWG |
|
Conductor stripped length: |
5 to 6 mm / 0.20 to 0.24 in |
|
Shell material: |
Plastic |
|
Color: |
Orange |
|
Environmental |
|
|
Ambient temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity |
30 % to 70 % RH |
|
Max. altitude |
2000 m / 6562 ft |
|
Electrical |
|
|
Power supply: |
110 - 240 VAC, 50/60 Hz |
|
Power consumption: |
< 1 W |
|
Sensors, meters |
|
|
Internal-temperature sensor: |
Yes |
|
Radio |
|
|
RF band: |
2400 - 2495 MHz |
|
Max. RF power: |
<20 dBm |
|
Wi-Fi protocol: |
802.11 b/g/n |
|
Wi-Fi Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
|
Bluetooth Protocol: |
4.2 |
|
Bluetooth Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
|
MCU |
|
|
CPU: |
ESP32-U4WDH |
|
Flash: |
4 MB |
|
Firmware capabilities |
|
|
Webhooks (URL actions): |
20 with 5 URLs per hook |
|
Scripting: |
Yes |
|
MQTT: |
Yes |
