Description

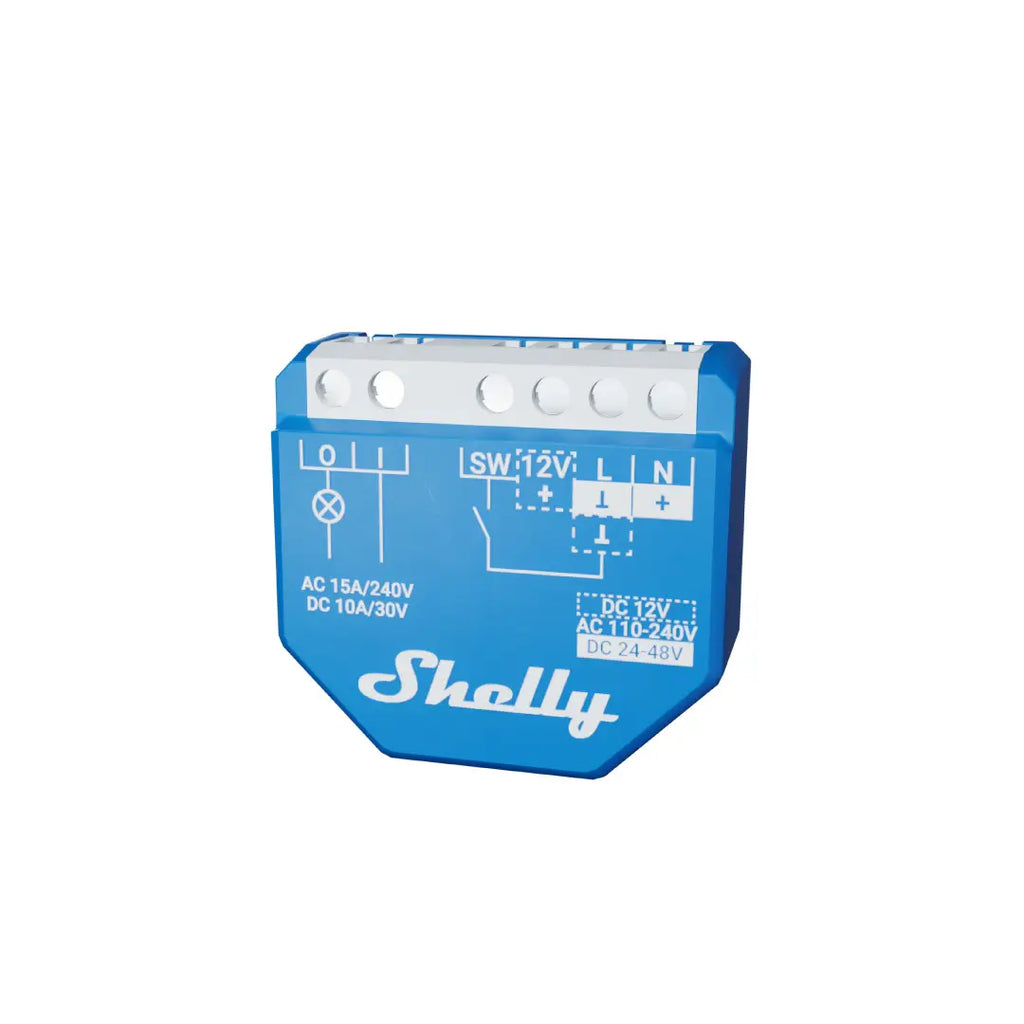

The Shelly Wave 1LR UL is a compact Z-Wave Long Range smart relay designed to add intelligent control to lighting, electrical circuits, garage doors, gates, pumps, and other wired loads. Its small form factor fits behind standard wall switches or inside electrical enclosures, allowing you to upgrade existing installations without replacing your switches.
Supporting both traditional Z-Wave mesh networking and Z-Wave Long Range (ZWLR), the Wave 1LR UL delivers reliable communication over greater distances while maintaining low power consumption. It is ideal for homes, large properties, commercial buildings, and detached structures where extended wireless coverage is beneficial.
The relay supports dry-contact switching, making it suitable for a wide range of automation applications, including low-voltage control systems and smart home integrations.
Key Features
- Z-Wave Long Range and standard Z-Wave compatibility
- UL-certified model for North American installations
- Compact in-wall design fits behind most switches
- Dry-contact relay for flexible control applications
- Supports lighting, garage doors, gates, pumps, and automation systems
- 15A maximum switching current (AC)
- Built-in overheating protection
- Functions as a Z-Wave mesh repeater when operating in standard Z-Wave mode
- Compatible with popular Z-Wave hubs and controllers
- Low standby power consumption
Technical Specifications
- Model: Shelly Wave 1LR UL
- Communication Protocol: Z-Wave Long Range (ZWLR) & Standard Z-Wave
- Relay Type: Dry Contact (Potential-Free)
-
Wireless Range:
- Z-Wave Mesh: Up to 40 m (131 ft.) indoors*
- Z-Wave Long Range: Up to 80 m (262 ft.) indoors or up to 1 km (3,281 ft.) line-of-sight outdoors*
- Z-Wave Repeater: Yes (Mesh mode); No (Long Range mode)
- Processor: Z-Wave® S800
- Security: Z-Wave S2 Security
- SmartStart Support: Yes
- Overheating Protection: Yes
- Mounting: In-wall / Flush-mounted
- Operating Temperature: -20°C to 40°C (-5°F to 105°F)
- Humidity: 30% to 70% RH
- Dimensions: 37 × 42 × 16 mm (1.46 × 1.65 × 0.63 in.)
- Weight: 26 g (0.92 oz.)
- Certifications: UL Listed, Z-Wave Certified
