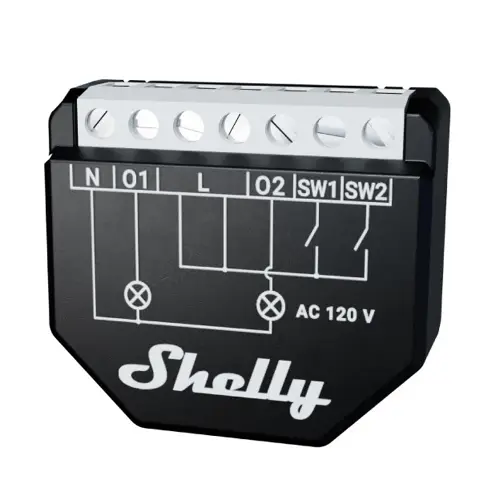

Shelly Wave 2PM UL Long Range

The Shelly Wave 2PM ZWLR is a compact dual-channel Z-Wave Long Range smart relay designed to automate two independent electrical circuits while providing accurate energy monitoring for each channel. Ideal for lighting, fans, pumps, and other electrical loads, it fits behind existing wall switches or inside electrical boxes without changing the appearance of your installation.

Built on the latest Z-Wave 800 Series platform, the Wave 2PM ZWLR supports both traditional Z-Wave mesh networking and Z-Wave Long Range, delivering improved wireless coverage, enhanced reliability, and lower power consumption when paired with a compatible Z-Wave controller.

Key Features

• Controls two independent electrical circuits
• Individual power monitoring for each output
• Supports Z-Wave Long Range and standard Z-Wave mesh networks
• Built on the Z-Wave 800 Series platform
• SmartStart provisioning for quick installation
• Security 2 (S2) authenticated encryption
• Fits behind standard wall switches and electrical boxes
• Supports OTA (Over-the-Air) firmware updates
• Compatible with certified Z-Wave hubs and controllers
• Works with momentary and toggle wall switches
• Low standby power consumption

Technical Specifications

• Communication: Z-Wave Long Range (ZWLR) and Z-Wave Mesh
• Z-Wave Series: 800 Series platform
• Device Type: Dual-channel smart relay
• Number of Outputs: 2 independent relay outputs
• Power Monitoring: Yes, individual measurement per channel + total consumption
• Supply Voltage: 120V AC, 50/60 Hz
• Maximum Load: Up to 7A per channel (14A total, depending on installation conditions)
• Power Consumption (standby): < 0.3W
• Wireless Security: S2 authenticated security framework
• SmartStart Support: Yes (simplified Z-Wave inclusion)
• Firmware Updates: Over-the-air (OTA) updates supported
• Installation Type: Flush mount behind wall switch or inside electrical box
• Switch Compatibility: Works with momentary and toggle switches
• Operating Temperature Range: -20°C to +40°C
• Device Protection: Built-in overload and temperature protection
• Dimensions: Compact form factor designed for standard electrical boxes
• Certification: UL-listed North American variant (ZWLR model)
