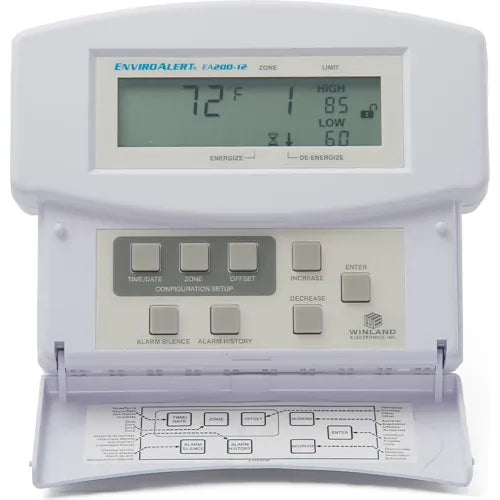

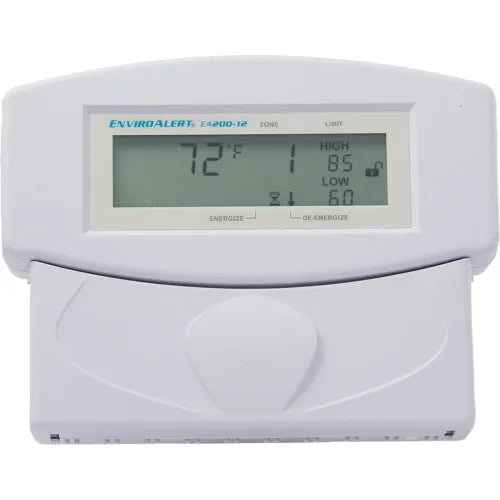

Winland EA-200 EnviroAlert Two Zone Alarm Monitor
The Winland EA-200 Enviro Alert Monitor can monitor ambient temperature using the built in temperature sensor, as well as one additional external wired sensor for environmental factors such as temperature, humidity and water leak detection.
The EA200 provides a local display and relay outputs to connect to an alarm system or automation system.
Each input zone has a relayed Form C relay output that triggered when the sensor falls out of programmed range. After programmed limits have been exceeded, the outputs can activate an alarm or automation system, local lights or sirens, a dialer or other systems.
An additional auxiliary relay will trigger when any of the input zones go in to alarm state.
Winland EnviroAlert EA-200 Features
- 1 Built in temperature sensor zone
- 1 external sensor input
- Easy to read large LCD display
- Eight event alarm memory with time and date
- Auxiliary output relay
- Auxiliary alarm silence feature with 10 minute timer
- Each zone has offset calibration adjustment
- Temperature & humidity Hi / Lo set points
- Output relays can be configured to be initially energized or de-energized
- Tamper proof lock setting
- Snap fit mounting base with main housing for easy access
- Plug in terminal strip connectors for easier wire termination
- Zones being monitored are displayed every few seconds
- Display F°, C°, % (Humidity) or Water Drop icon
- Zone configuration retained in memory if power is lost
- TEMP-L-S Low range temperature
- TEMP-L-W Low range water temperature
- TEMP-H-S High range temperature
- TEMP-H-W High range water temperature
- HAIII+ Humidity
- WSS Water leak sensor
- WUCS Under carpet water leak sensor
Winland EA-200 Specifications
- Power required: 12VDC @ < 200mA
- Remote Sensor Inputs: 1 (1 on-board sensor)
- Operating Range: 32 to 122° F (0 to 50° C)
- Low & High Limit Adjust Range: -58 to 299° F (-50 to 150° C)
- Alarm Outputs: 2 SPDT Relays (1A @ 30 VDC) configurable
- Auxiliary Alarm Output: 1 - SPDT Relay non-configurable
Winland EA-200 Includes
- 1 x Winland EA200-12
Winland EA-200 Downloads
