DoorBird IP Video Door Station Upgrade for D201 / D202, S.Steel V2A, Bronze

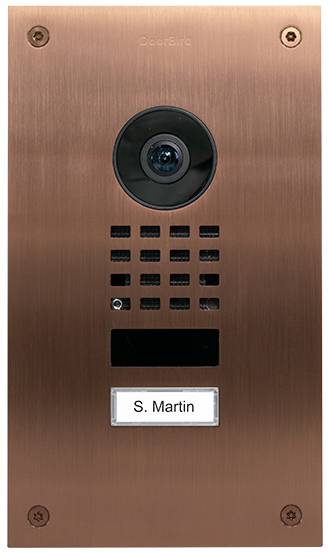

DoorBird IP Intercom Video Door Station D1101UV

Simply replace your D201/D202 front panel with a main electrical unit with the D1101UV - no rebuilding or new wiring is necessary!

THIS IS AN UPGRADE ONLY

Made In Germany!

Immediately take advantage of the following upgrades:

• Larger camera angle: 200° hemispherical lens
• Higher image resolution: HDTV 1080p
• Latest sensor technology: 4D motion sensor with distance configuration
• More powerful speaker
• Classy and discreet design

D1101UV Specifications:

• Front Panel: 3 mm (0.12 in) (V2A - Standart) / (V4A Salt-Water Resistant) / (PVD-coating with bronze-finish)
• Mounting housing (backbox): Not included is, use of an already installed D201/
• D202 housing is assumed.
• Call button: Illuminated
• Nameplate: Plastic
• Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
• Weight: 735 g
• Connectors:
• • LAN/PoE (T+, T-, R+, R-)
• • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for the electric door opener
• • External input for external door opener button
• • 15 V DC input (+, -), max. 15 W
• Weatherproof: Yes, IP65
• Approvals: IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471
• Dimensions: 215 x 125 x 28 mm (H x W x D) 8.46 x 4.92 x 1.10 in (H x W x D)
• Operating conditions: -25 to +55°C / -13 to 131°F
• Humidity: 10 to 85 % RH (non-condensing)
• Scope of delivery:
• 1x Main Electrical Unit
• 1x Front panel
• 1x Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
• 1x Screwdriver
• 1x Quickstart guide with Digital Passport
• 1x Installation manual
• 1x Small parts
• Warranty: see www.doorbird.com/warranty
