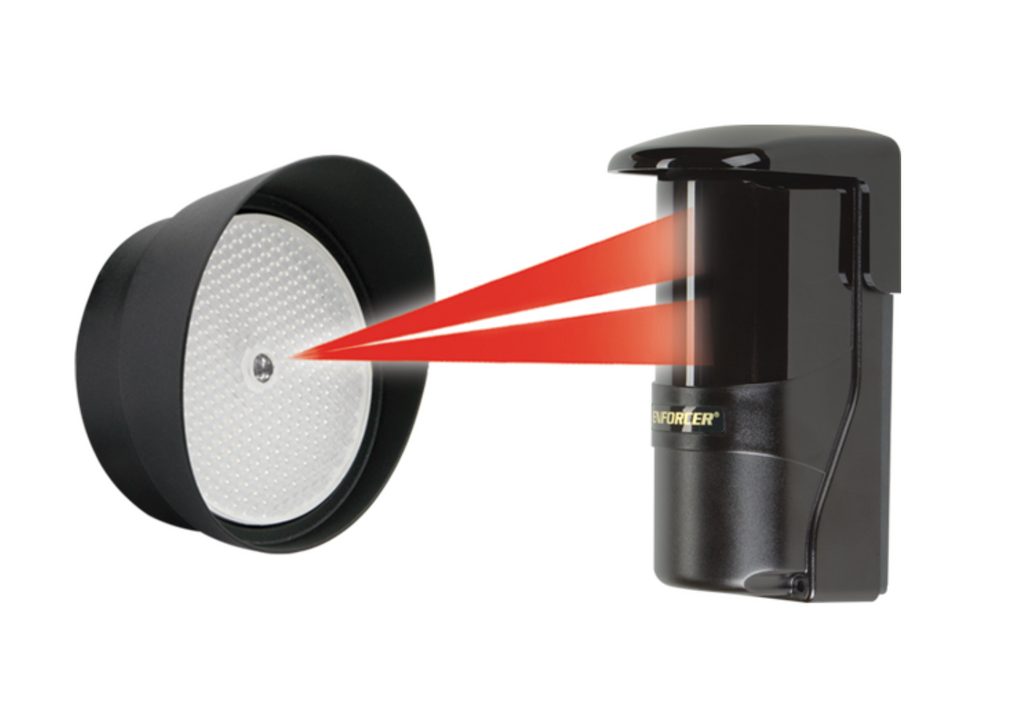

Seco-Larm E-931-S50RRGQ Reflective Photoelectric Beam Sensor, ETL UL325 Compliant, 50ft

Seco-LarmSKU: E-931-S50RRGQ



Upgrade your security system with the E-931-S50RRGQ Seco-Larm Reflective Photoelectric Beam Sensor. This high-quality sensor, compliant with ETL UL325 standards, covers an impressive 50ft range. Enjoy reliable detection and enhanced peace of mind, thanks to its reflective technology and robust construction.

Seco-Larm E-931-S50RRGQ  Reflective Photoelectric Beam Sensor, ETL UL325 Compliant, 50ft Features:

  • For outdoor gates, garage doors, etc.
  • Weatherproof (IP55) construction for indoor/outdoor use
  • Anti-condensation housing
  • Dual-color LED alignment system
  • Form C relay: 500mA@30VAC/VDC
  • Tamper switch: N.C. 500mA@30VAC/VDC
  • 31/4” (82mm) Round reflector with hood included
  • Compact size
  • Monitored output: N.C., 10kΩ Resistor

Seco-Larm E-931-S50RRGQ  Reflective Photoelectric Beam Sensor, ETL UL325 Compliant, 50ft Specifications:

  • Type: Reflective photoelectric beam sensor
  • Current Draw: Standby - 55mA@12VDC, Active - 40mA@12VDC
  • Sensing Range: Up to 50' (15m)
  • Operating Voltage: 12-30V DC/AC 60Hz, 100mA
  • Reaction time: 10ms
  • Light Source: IR LED
  • LEDs - Red: Solid (No beam signal, triggered)
  • LEDs - Green: Solid (Good beam signal, properly aligned)
  • LEDs: Alternating Flash (Poor beam signal)
  • Alarm Output: SPDT relay output (NO/NC/COM)
  • Switching Capacity: 500mA@30VAC/VDC
  • Tamper Switch: 500mA@30VAC/VDC
  • Operating Temperature: -13º~140º F (-25º~60º C)
  • Enclosure: Weatherproof IP55
