ALTA Serial MODBUS Gateway, 900MHZ

MonnitSKU: MNG2-9-SG-SMG

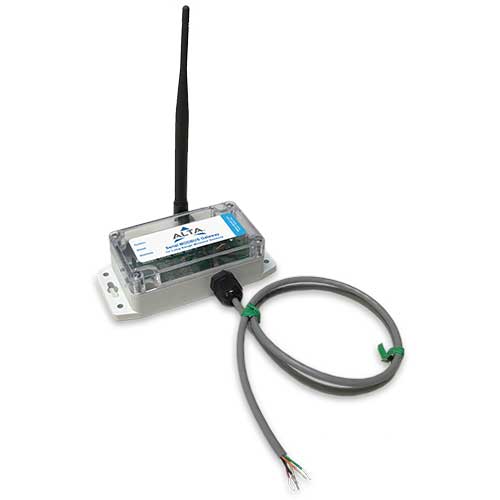

The Monnit Serial Modbus Gateway acts as a data concentrator for Monnit wireless sensor networks. This device incorporates Monnit's Access Point Node (APN) and Serial RS-232C and RS-485 Interfacing hardware.

Monnit MNG2-9-SG-SMG Features

  • 1,200+ foot range
  • 12+ year battery life
  • 80+ wireless sensors
  • Bank-level AES security
  • Up in 15 easy setup
  • Global ready (900, 920, 868 & 433 MHz)
  • Monnit Serial Modbus Gateway Specifications

  • Antenna: Connector: RP-SMA Gain: 5.0 dBi Standard
  • Protocols Supported: Jumper for RS-232 and RS485
  • Input Voltage: 4.5 - 36.0 VDC
  • LED Lights: Wireless Activity, Wired Activity, System Status
  • Enclosure Material: Durable, Impact-Resistant UV Stabilized Polycarbonate (IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 Rated)
  • Dimension: 179.603 x 90.678 x 41.30 mm
  • Weight: 16 oz.
  • Variation Specifications

  • Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  • ALTA 900 MHz Specifications

  • Operating Frequency: 900 MHz Operating Frequency
  • Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)
  • Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*
  • Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
